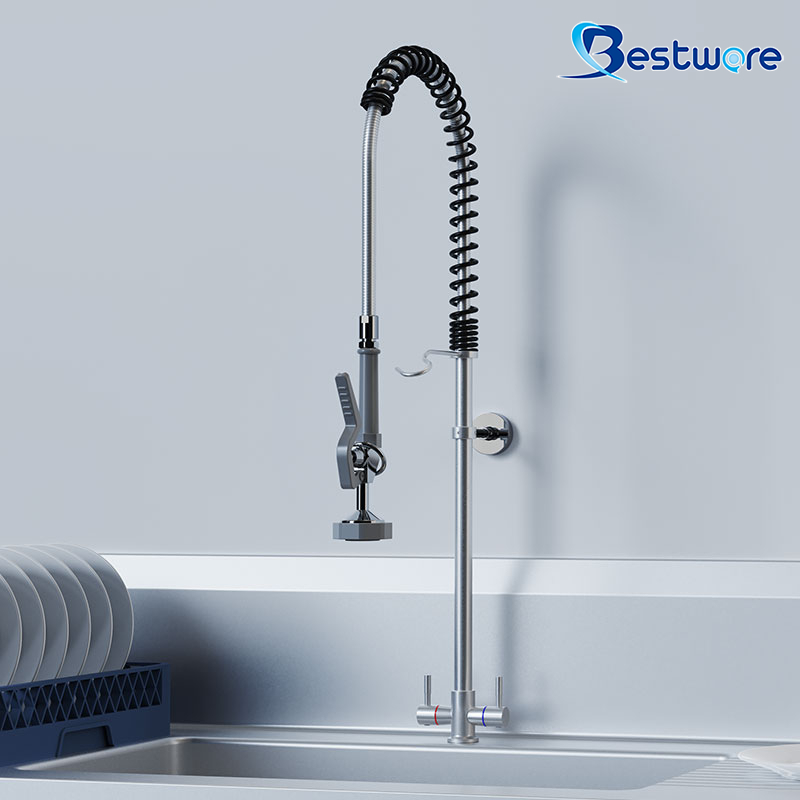

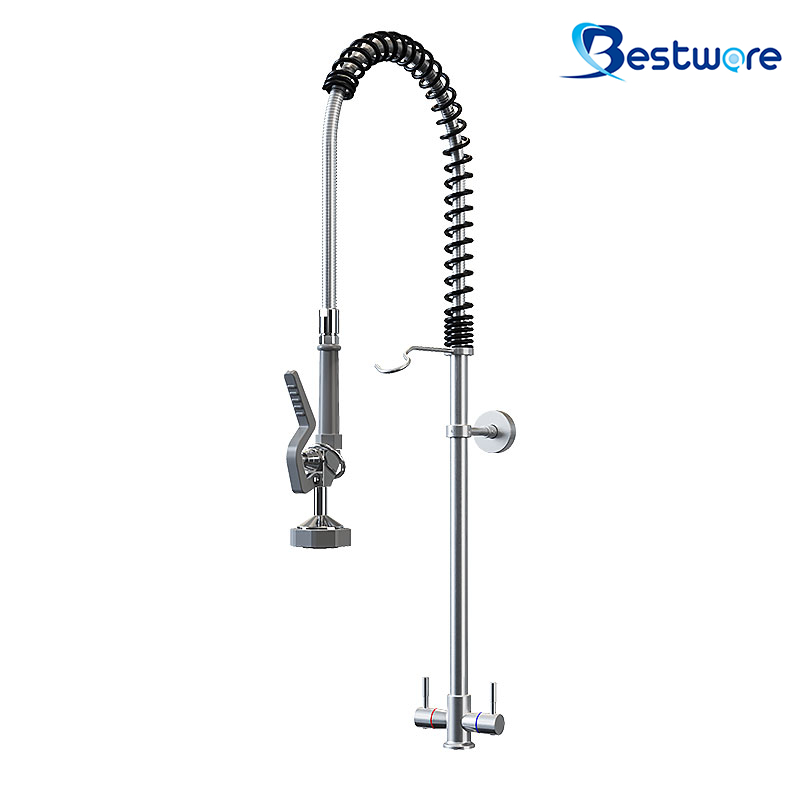

DAISY Economy - Hob Mount Pre-rinse Faucet

DESCRIPTION

Model: ECH100G

• Maximum Working Temperature: 80℃

• Maximum Static Pressure: 1000kPa (10 bar)

  RECOMMENDED WORKING PRESSURE is 500kPa (5 bar)

• Flow Rate at Spray Valve (BWSG-BRE):

  Shower Sprayer – 8.1 LPM at 500kPa

• Installation Type: Single Hob Mount

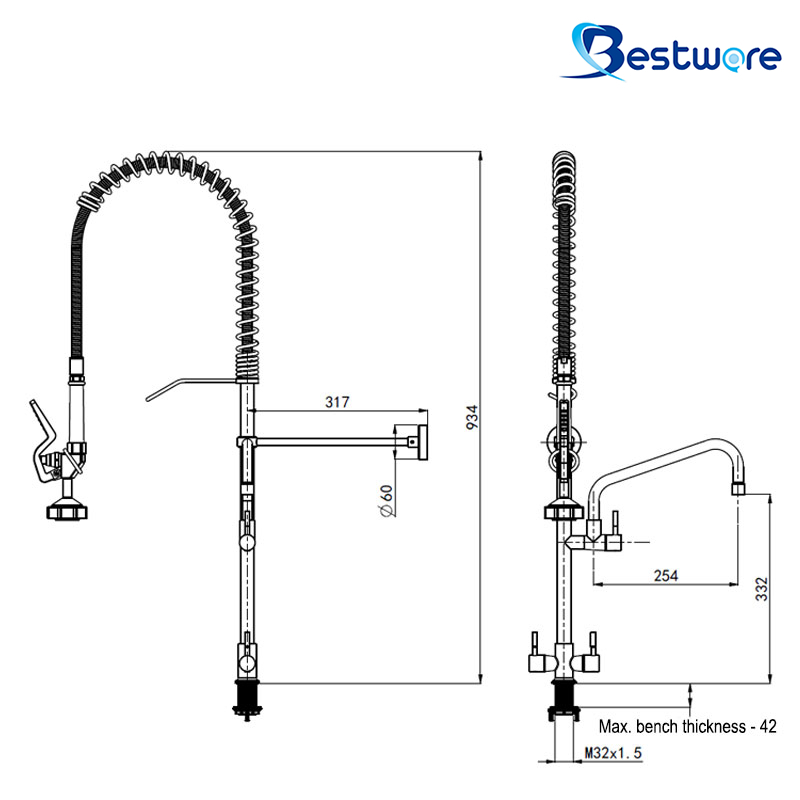

• Number of Holes for Installation: Single Hole, Φ32~34mm

• Bench Thickness - 42mm Maximum

• Pot Filler: None

• Cartridge: Ceramic, 1/4 Turn

• Number of Handles: Single Handle

• Pre-rinse Hose: 925mmL

• Material: Stainless Steel 304

• Surface Treatment: Brushed

• Surface Finishing: Satin Finish Natural Color
