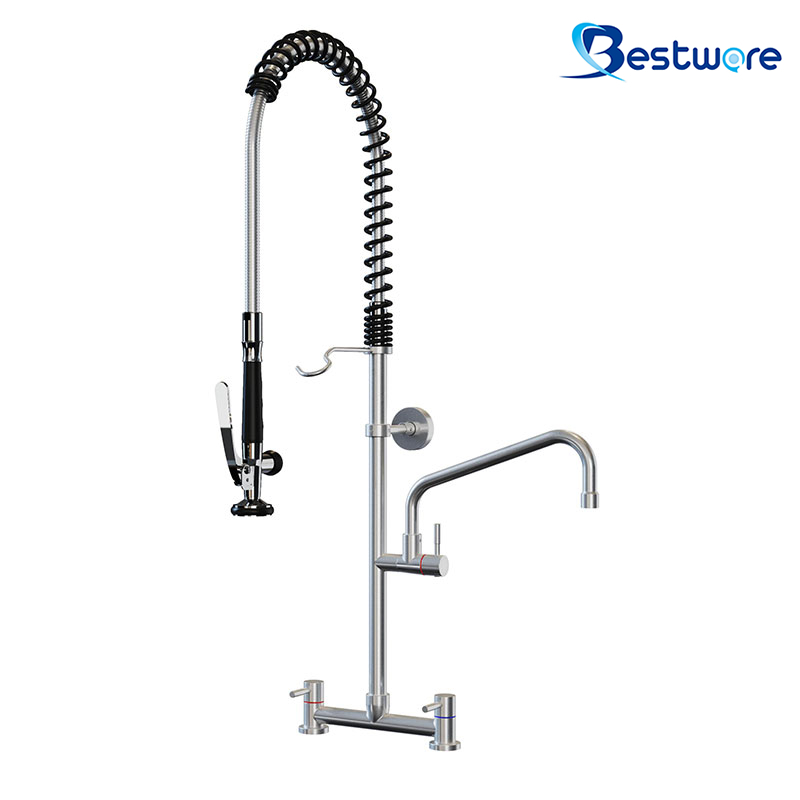

DAISY - Dual Hob Mount Pre-rinse Faucet with 10" Pot Filler

DESCRIPTION

Model: ECD110

• Maximum Working Temperature: 80℃

• Maximum Static Pressure: 1000kPa (10 bar)

  RECOMMENDED WORKING PRESSURE is 500kPa (5 bar)

• Flow Rate at Aerator: Non-pressurize

• Flow Rate at Spray Valve (BWSG-BRS):

  Shower Sprayer – 7.8 LPM at 500kPa

• Installation Type: Dual Hob Mount

• Number of Holes for Installation: Dual Holes, Φ21~23mm

• Bench Thickness - 18mm Maximum

• Pot Filler: 10" Swivel Spout

• Cartridge: Ceramic, 1/4 Turn

• Number of Handles: Dual Handle

• Pre-rinse Hose: 925mmL

• Material: Stainless Steel 304

• Surface Treatment: Brushed

• Surface Finishing: Satin Finish Natural Color
