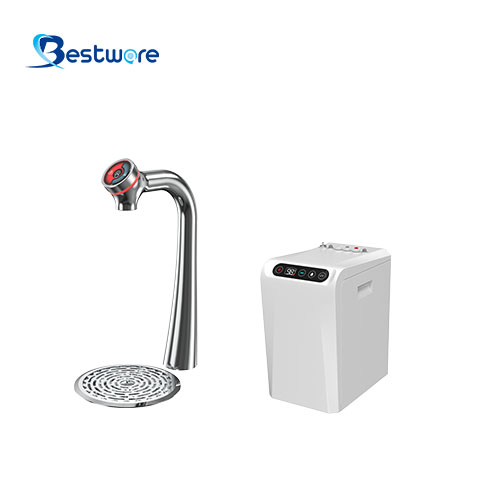

2 in 1 Commercial Water Dispenser without RO filtration - Undercounter

Model No.

G5DS-15

Style

2 in 1

Function

2 in 1 (Hot/Ambient Water)

Tap Size (Tap+Drip Tray) (W x D x H)

158x223x332 mm

Tap Body Material

SUS304 plasma mirror polishing (unplated)

Tap Animated Display Screen

1.5-inch OLED intelligent control, high-definition display rotary knob

Tap Communication Interface

Shares with chilling unit and heating unit

Heating Unit Machine Size

230x322x438 mm

Heating Unit Supply Voltage

110 V/60 Hz or 220 V/50 Hz

Heating Unit Water Pressure Range

0.15 MPa~0.6 MPa

Heating Power Rating

1200 W (110 V) / 1500 W (220 V)

Heating Capacity

Single continuous dispensing (≈5 L) at 95°C+,
20 L/h, ≈ 133 cups/h (150 ml/cup)

Heating Unit Adjustable Temperature Range

45℃~98℃

Heating Unit High-pressure Relief Port

Yes

Heating Unit Inlet/Outlet Water Pipe Connection

¼" PE

Heating Unit Communication Interface

Shares with chilling unit and faucet

Heating Unit UV Sterilization

External

Heating Unit Dry Burn Protection

Yes

Heating Unit Anti-scald

Yes

RO Filtration Unit

No

Hole Size for Tap

Φ32~35 mm

Drip Tray Hole Size for Tap

Hole Size Φ130 mm，3×Φ8 mm

Max Counter Thickness for Tap

≤40 mm (customizable to extra thickness)

Minimum Base Cabinet Size for Units (W x D x H)

265x500x630 mm
