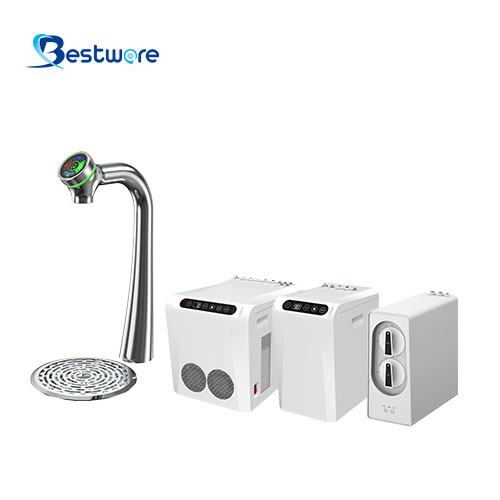

G1DS-1023
Bestware
Model No. | G1DS-1023 |
Style | 4 in 1 |
Function | 4 in 1 (Chilled/Sparkling/Hot/Ambient Water) |
Tap Size (Tap+Drip Tray) (W x D x H) | 158x223x332 mm |
Tap Body Material | SUS304 plasma mirror polishing (unplated) |
Tap Animated Display Screen | 1.5-inch OLED intelligent control, high-definition display rotary knob |
Tap Communication Interface | Shares with chilling unit and heating unit |
Chilling Unit Machine Size | 355x464x438 mm |
Chilling Power Rating | 520 W |
Chilling Unit Supply Voltage | 110 V/60Hz or 220 V/50Hz |
Chilling Unit Water Pressure Range | 0.15 MPa~0.6 MPa |
Chilling Capacity | 40 L/h, ＝ 200 cups/h (200 ml/cup) |
Chilling Unit Adjustable Temperature Range | 0℃~8℃ |
Chilling Unit Inlet/Outlet Water Pipe Connection | ¼" PE |
Chilling Unit Communication Interface | Shares with heating unit and faucet |
Chilling Unit UV Sterilization | External |
Sparkling Capacity | Max 3 L/min |
Sparkling Water Concentration | 3 g/L |
Chilling Unit CO2 Cylinder | Customer's Replacement |
Chilling Unit CO2 Operating Pressure | 0.35-0.4 MPa (Under 0.1 MPa With Audible Feedback) |
Chilling Unit CO2 Intake Pipe | ¼" PE |
Heating Unit Machine Size | 230x322x438 mm |
Heating Unit Supply Voltage | 110 V/60Hz or 220 V/50Hz |
Heating Unit Water Pressure Range | 0.15 MPa~0.6 MPa |
Heating Power Rating | 1200 W (110 V) / 1500 W (220 V) |
Heating Capacity | Single continuous dispensing (≈5 L) at 95°C+, |
Heating Unit Adjustable Temperature Range | 45℃~98℃ |
Heating Unit High-pressure Relief Port | Yes |
Heating Unit Inlet/Outlet Water Pipe Connection | ¼" PE |
Heating Unit Communication Interface | Shares with chilling unit and faucet |
Heating Unit UV Sterilization | External |
Heating Unit Dry Burn Protection | Yes |
Heating Unit Anti-scald | Yes |
RO Filtration Unit | Yes |
RO Filtration Unit RO Filter Cartridge Lifepan (1000G) | 24 months or 8000 L |
RO Filtration Unit PAC Composite Filter Cartridge Lifepan | 12 months or 4000 L |
RO Filtration Unit Water Flow | 2.6L/min |
RO Filtration Unit Replacement Reminder | Yes, indicator light flashes to signal replacement |
Hole Size for Tap | Φ32~35 mm |
Drip Tray Hole Size for Tap | Hole Size Φ130 mm，3×Φ8 mm |
Max Counter Thickness for Tap | ≤40 mm (customizable to extra thickness) |
Minimum Base Cabinet Size for Units (W x D x H) | 990x500x630mm |
